WinPLOTR demo.2: Manual Profile Fitting Procedure

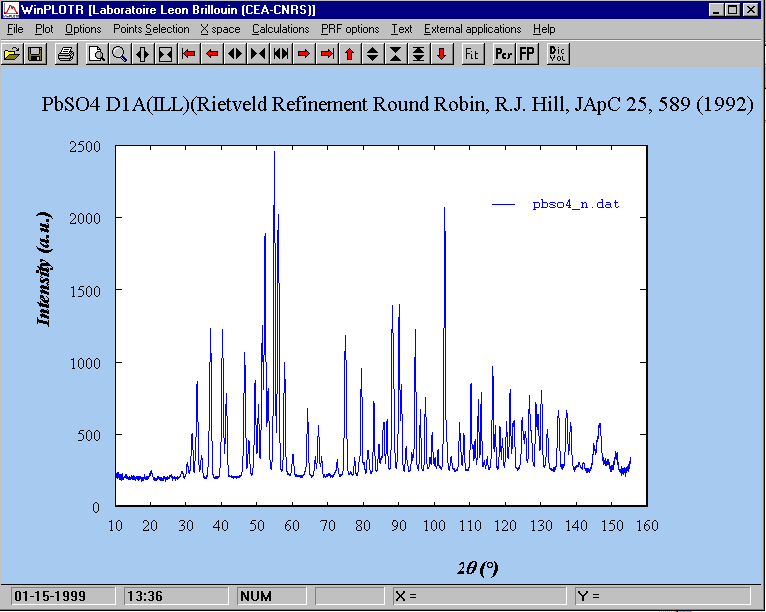

• The 'pbso'_n.dat' INSTRM=6 data file is then displayed automatically in the main WinPLOTR Windows. Extrema values can be modified in the 'Plot / Zoom' menu option and the number of graduations in the 'Option / Graduations' menu option.

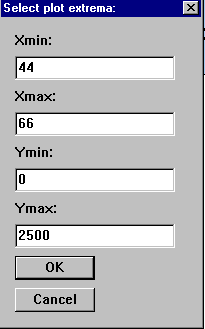

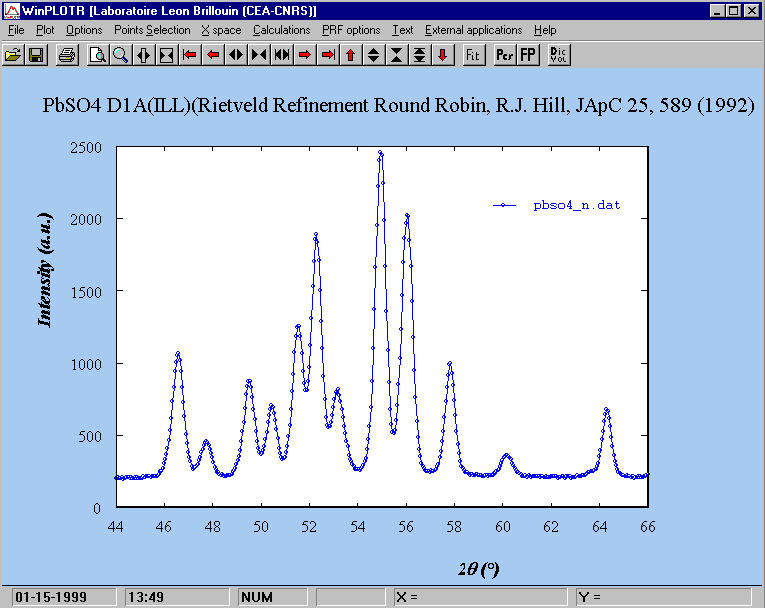

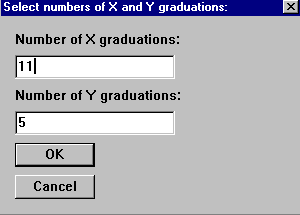

  Drag a rectangle with the left mouse button will zoom the selected area (This operation can also be done with the 'Plot / Zoom' option by entering Xmin, Xmax, Ymin and Ymax values). Let's select the 22 to 62 angular 2Theta range. The 'Option / Graduations' menu option will be helpfull to select exactly this angular range (Y graduations
